Flatter membrane-facing mesh surface
The anode mesh orientation is reviewed so the flatter face is presented toward the membrane, helping limit localized contact.
Ion membrane electrolyzer engineering
MT-2.7 Ion Membrane Electrolyzer
A new-cell platform manufactured against confirmed drawings, material requirements and inspection scope. Every project is reviewed for structure, operating conditions and delivery requirements before quotation.
Three membrane-facing design details
These details are intended to reduce avoidable contact points at the membrane-facing surfaces. Final geometry, material and suitability remain controlled by the approved drawing and order.
Reviewed spring-element geometry
The cathode spring element is formed and inspected to avoid unintended burr contact before the face mesh is assembled.
Flattened crossing points
The cathode face mesh is processed to reduce raised intersections that could create concentrated membrane contact.
Materials controlled by the project specification
Material grades are confirmed from the operating medium, drawing and signed order. Supplier names are not used as a substitute for a material certificate or project specification.
TA1 titanium
Reviewed for anode-side plates, mesh or associated components according to the approved construction.
N201 nickel
Reviewed for cathode-side plate, mesh and structural requirements defined by the project.
Titanium-palladium alloy
Applied only where the confirmed design calls for sealing-surface or crevice-corrosion control.
Noble-metal coating
Coating system, preparation, inspection and acceptance are stated in the quotation or signed order.
Controlled manufacturing sequence
The web page describes the normal control points. The released drawing, process sheet and inspection plan remain the controlling documents for each order.

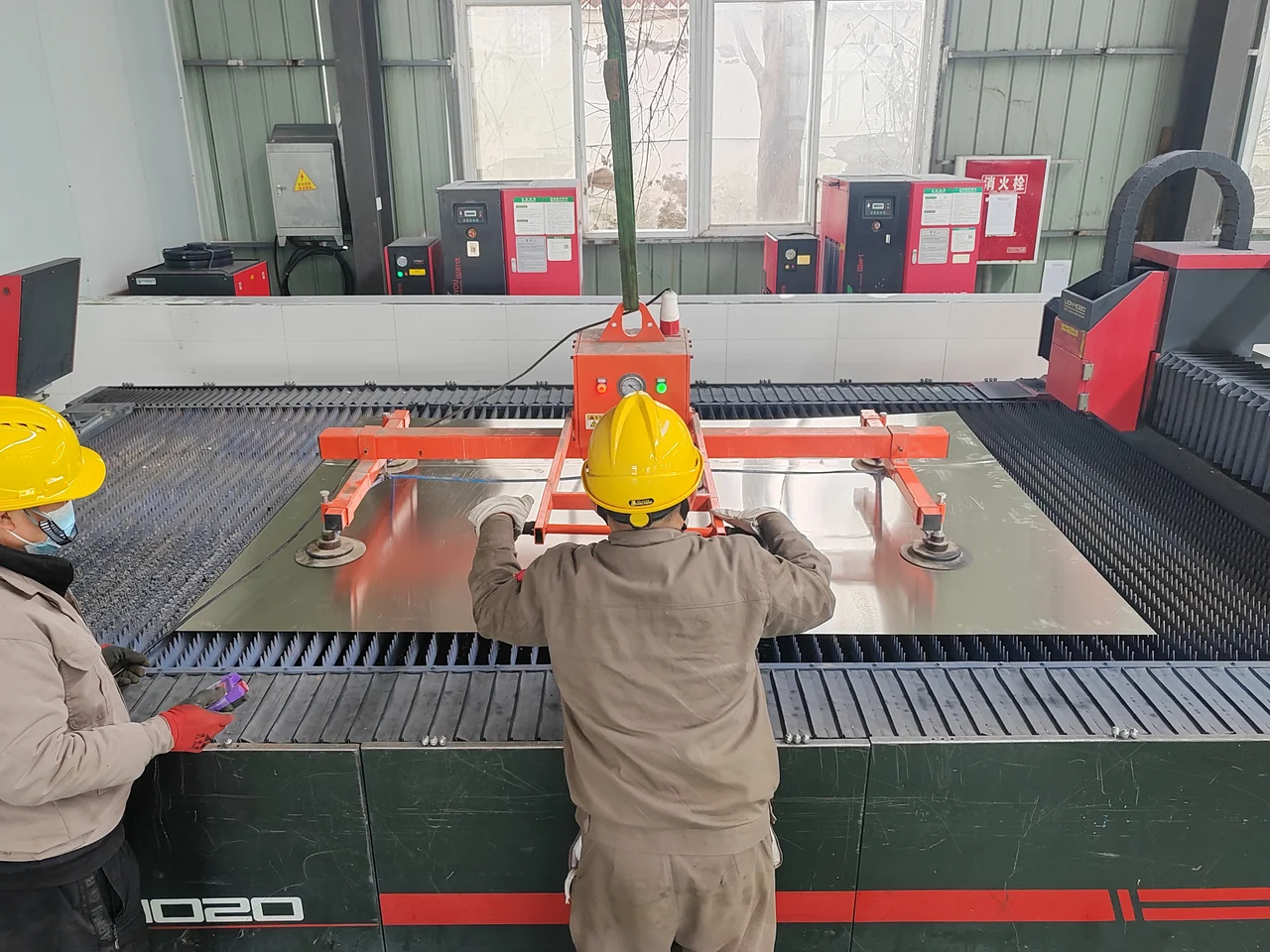

01. CuttingPlate and component cutting against the released drawing.

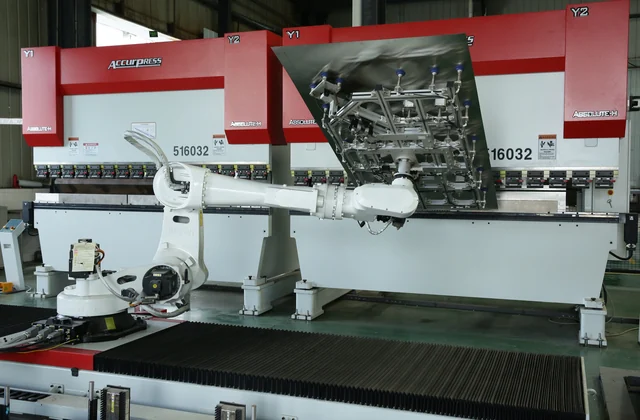

02. FormingControlled bending and forming before assembly checks.

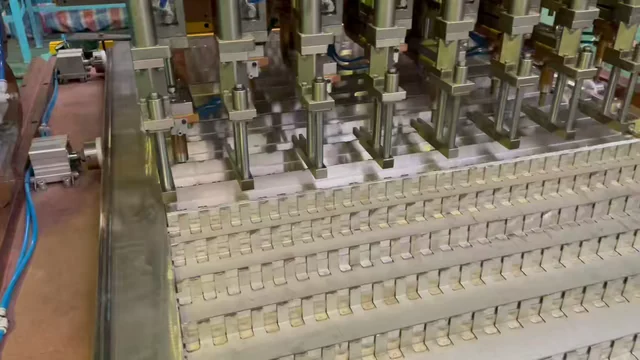

03. WeldingPlate, rib, frame and connection assembly using the approved sequence.

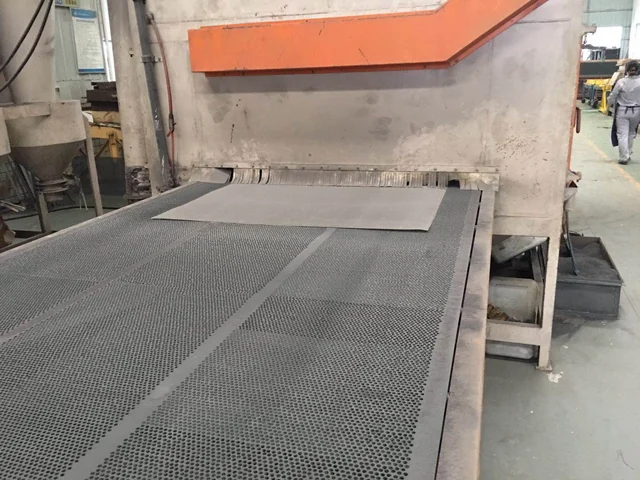

04. Surface preparationCleaning and preparation appropriate to the confirmed coating system.

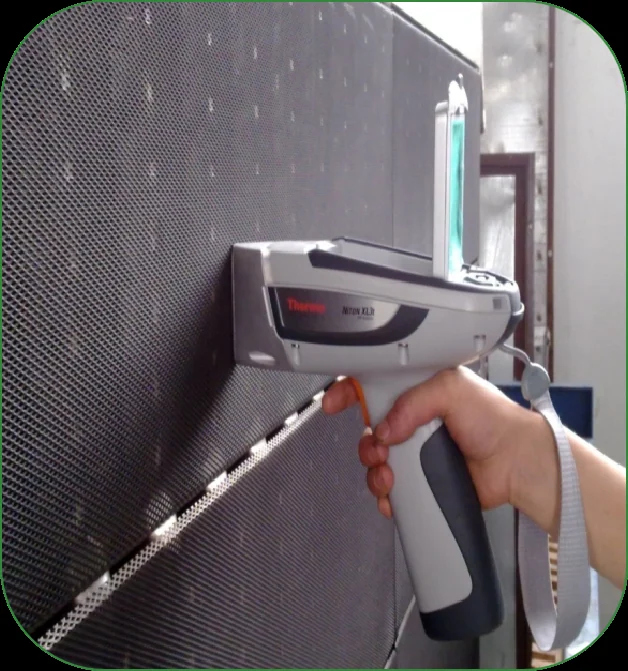

05. Coating controlCoating preparation and inspection against the agreed acceptance scope.

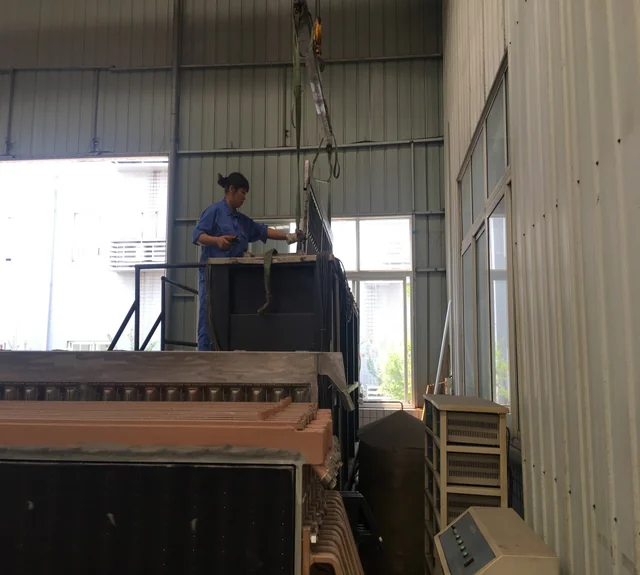

06. Final checksVisual, dimensional and leak checks before packing and release.

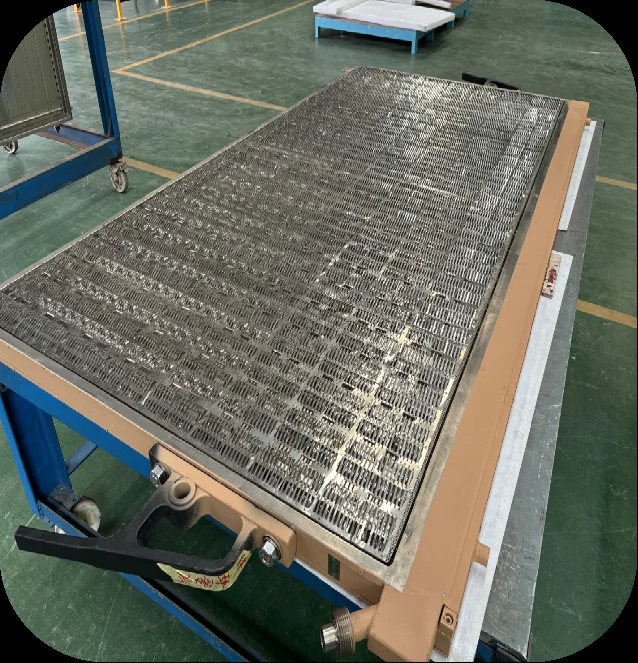

Anode and cathode sides
Workshop images are shown as manufacturing references. Final nozzle arrangement, mesh, dimensions and surface treatment follow the confirmed order documents.
Third-party model and brand names identify compatibility requirements only. Metatecno is an independent manufacturer and does not claim affiliation with, endorsement by or authorization from an original equipment manufacturer unless expressly documented.
Questions before quotation
Send the project information needed for an engineering review. A model name alone is not a production specification.
What information is required for an MT-2.7 quotation?
Provide the cell drawing, required configuration, operating medium and conditions, material requirements, inspection scope, quantity and delivery target.
Are the listed materials fixed for every order?
No. The final material grade, thickness, component scope and coating system are confirmed in the approved drawing, quotation or signed order.
Can an existing cell be evaluated for repair instead?
Yes. Send photos, drawings and service history so the engineering team can compare new-cell manufacturing with repair, recoating or membrane-gap retrofit.
Do third-party platform names imply OEM authorization?
No. They are used only to describe compatibility and maintenance requirements unless a separate written authorization is available.
Request an engineering review
Send drawings, configuration, operating conditions, inspection requirements, quantity and delivery needs. The team will confirm the information required before quotation.
Compatibility and trademark notice
Model and brand names identify compatibility requirements only. Metatecno is an independent manufacturer and does not claim affiliation with or authorization from the original equipment manufacturer unless expressly documented.
